Digital printing is easy to print and creates fantastic details for photos and more.
More details about digital printing (PDF)
Check out this article and video sponsored by Mimaki USA about our technology.

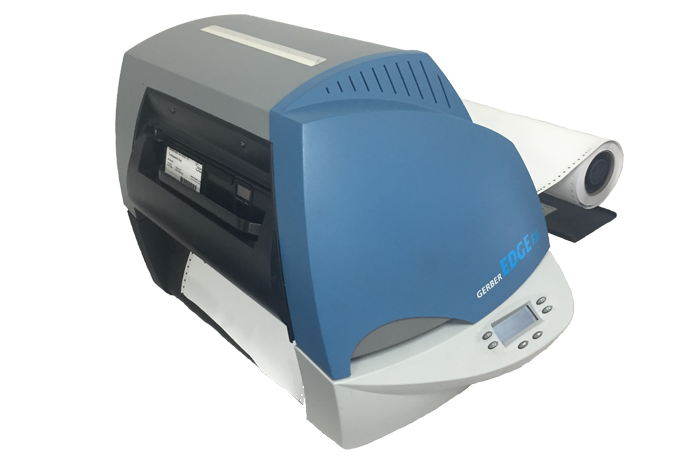

Gerber Edge FX

BENEFITS
5-year outdoor durability
PRINT RESOLUTION
300 DPI
MEDIA TYPES
• Vinyl
• Mylar
• Static cling
• Polyester
• and more
MEDIA DIMENSIONS
11.5" x 35" (image size)
INKS
• Diverse selection of color foils
• CMYK and process color simulations of solid Pantone colors
• 50+ Gerber spot colors
PLOTTER
Gerber Envision

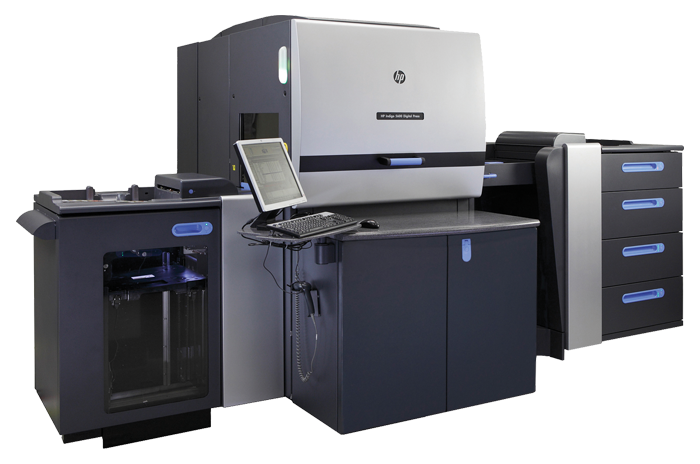

HP INDIGO S5600

BENEFITS
• Standard barcoding
• 2-D barcoding
• Plastic cards
• Serializing
• Variable data
PRINT RESOLUTION
600 x 900 DPI (high-quality resolution)
1200 x 1200 DPI (maximum)
LPI
175 (standard)
220 (maximum)
MEDIA TYPES
• PVC
• Vinyl
• Polyester
• Polycarbonates
• and more
MEDIA DIMENSIONS
17.7" x 12.48" (image size)
19" x 13" (maximum sheet size)
INKS
• 4-color printing (CMYK)
• HP IndiChrome 6-color printing (CMYK+orange+violet)
• Fluorescent and invisible inks available (may require minimums)
• Spot colors

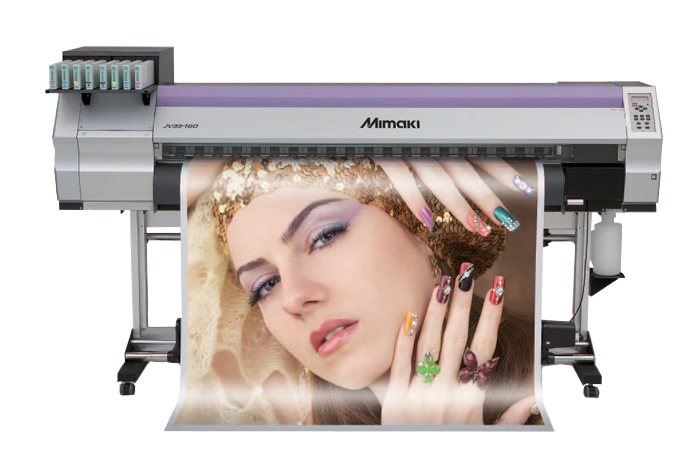

MIMAKI JV33-160 & JV300
ROLL-TO-ROLL

BENEFITS
Solvent based inks are UV resistant for 3 years, pending location
PRINT RESOLUTION
360 x 360 DPI (minimum)
1440 x 1440 DPI (maximum)
MEDIA TYPES
• Vinyl
• Vinyl white matte banner
• Ri-cling
• Aircraft film
MEDIA DIMENSIONS
60" x 100'
INKS
• 4-color printing (CMYK, JV33-160 and one JV300)
• 4-color printing + white (two JV300)

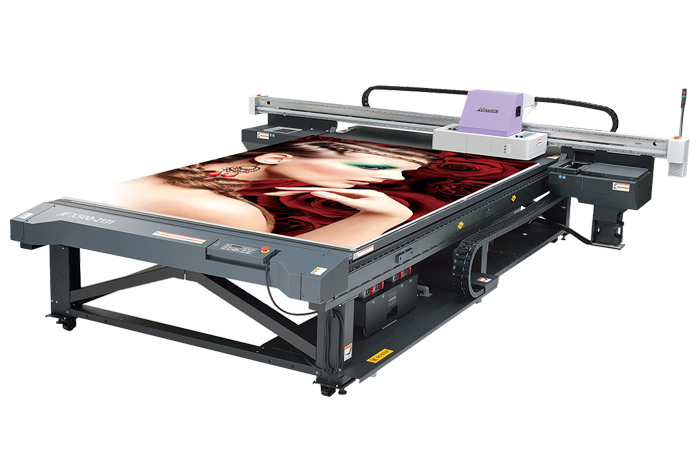

MIMAKI JFX500-2131
LARGE FORMAT UV LED FLATBED

BENEFITS
LED ink curing technology
PRINT RESOLUTION
600 x 900 DPI (high-quality resolution)
1200 x 1200 DPI (maximum, with a 4 pico-liter dot size)
MEDIA TYPES
• Reinforced vinyl
• Pressure-sensitive vinyl
• Foam board
• Corrugated board
• Styrene
• Aluminum
• Rigid plastics
• Glass
• Paper
• Safety tread materials
• Virtually any rigid material up to 2" thick
For better adhesion to some plastic films, a primer may be needed.
MEDIA DIMENSIONS
82" x 122" (maximum)
INKS
• 4-color printing (CMYK)
• White
• Clearcoat (available as a separate application to increase outdoor life and to add or reduce gloss)
